Standard KLINPORT(R)Specification


name KPT-1Q
KPS-1Q
KPF-1Q
AX-1Q
KPT-2
KPS-2
KPF-2
AX-2
KPT-3
KPS-3
KPF-3
KPT-4
KPS-4
KPF-4
Material S25C SUS304 S25C SUS304 S25C SUS304 S25C SUS304

service pressure
kgf/cm2 (MPa)

20(1.96) 20(1.96) 20(1.96) 20(1.96) 18(1.76) 18(1.76) 18(1.76) 18(1.76)
service temperature ℃ 250 230 200 180 120 100 90 80
visibility part diameter
mm
25 40 70 90
thickness of glass
mm
5 11(AX-2:7mm) 11 14

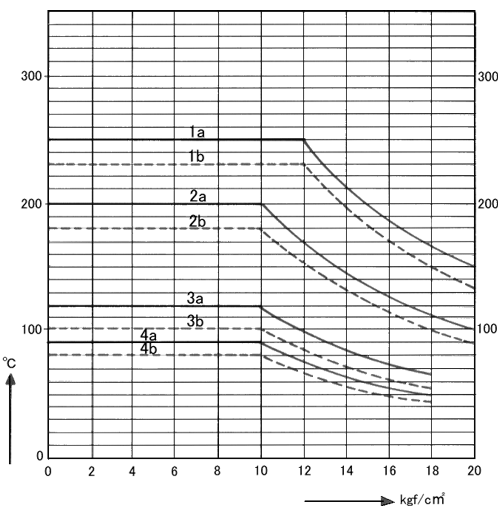

graph index 1a 1b 2a 2b 3a 3b 4a 4b
