KLINGAGE MG (Magnet Float) Type Level Gage

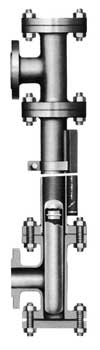

MGN100 Series (Lining Type)
MGN141R-11
（Glass lining ）

Magnetic Level Gages

NKG MGN100 series are designed for corrosive liquid measurement. The body is lined with suitable material against various corrosive chemicals.

Standard Specification

Column size 2B
Column schedule Sch 10s, Sch 40
Flange Rating 10K, 20K, 150Lb, 300Lb
Materials SUS304
Lining: PFA, FEP, ETFE, Glass
Indicator Method Rotor Magnet
Pressure Rating at 38℃ 4.9MPa
Temperature Range Up to 200℃(Change with kinds of linig)
Specific Gravity Range .7 and up
Viscosity Rage Up to 1.5p

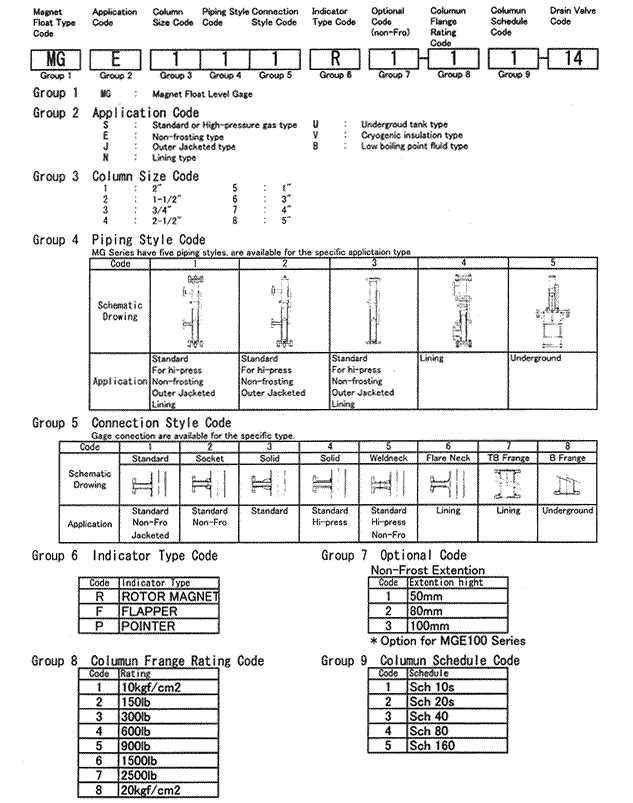

Piping Shape Code
