Magnetic Level Gages

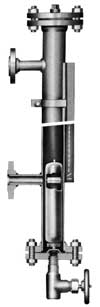

MGS100 Series (Standard Type)Type MGS111R-11-21
MGS100 Series (Standard Type)
MGS100 series are designed for high pressure and high temperlature application.
Standard Specification
| Column size | 2B |
|---|---|
| Column schedule | Sch 10S、Sch 40、Sch 80 |
| Flange Rating | 10K, 20K, 150Lb, 300Lb, 600Lb, 900Lb, 1500Lb |
| Materials | SUS304, SUS304L, SUS316, SUS316L, PVC Titanium,Hastelloy |
| Indicator | Rotor Magnet |
| Pressure Rating at 38℃ | 19.7MPa |
| Temperature Range | Up to 400℃ |
| Specific Gravity Range | .35 and up |
| Viscosity Rage | Up to 1.5p |
| Piping Model Code |
1、2、3（
）
|
