KLINPORT-Sight Glass

Specification and rating table of klinport(regular model)

Model	KPT-1Q KPS-1Q KPF-1Q AX-1Q		KPT-2 KPS-2 KPF-2 AX-2		KPF-3		KPF-4
Material	carbon steel	stainless steel	carbon steel	stainless steel	carbon steel	stainless steel	carbon steel	stainless steel
Max. Pressure Mpa (kgf/cm2)	1.96(20)	1.96(20)	1.96(20)	1.96(20)	1.76(18)	1.76(18)	1.76(18)	1.76(18)
Max. Temperature℃	250	230	200	180	120	100	90	80
Window Size mm	25		40		70		90
Glass Thickness mm	5		11(AX-2:7mm)		11		14

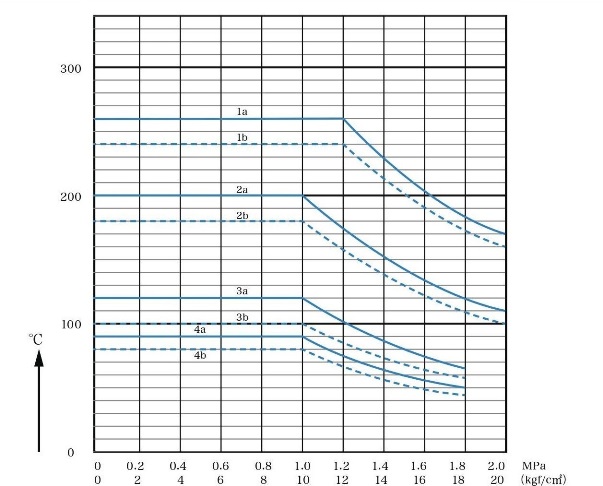

Index in Graph	1a	1b	2a	2b	3a	3b	4a	4b

Note: Safety factor in the graph is set as 10 based on related regulation
