Magnetic Level Gages
MGS100 Series (Standard Type)
MGS100 Series (Standard Type)
Type MGS111R-11-21
Type MGS111R-11-21
MGS100 series are designed for high pressure and high temperlature application.
Standard Specification
- Column size
- 2B
- Column schedule
- Sch 10S、Sch 40、Sch 80
- Flange Rating
- 10K、20K、150Lb、300Lb、600Lb、900Lb、1500Lb
- Materials
- SUS304、SUS304L、SUS316、SUS316L、PVC
Titanium,Hastelloy - Indicator
- Rotor Magnet
- Pressure Rating at 38℃
- 19.7MPa
- Temperature Range
- 400℃
- Specific Gravity Range
- .35 and up
- Viscosity Rage
- Up to 1.5p

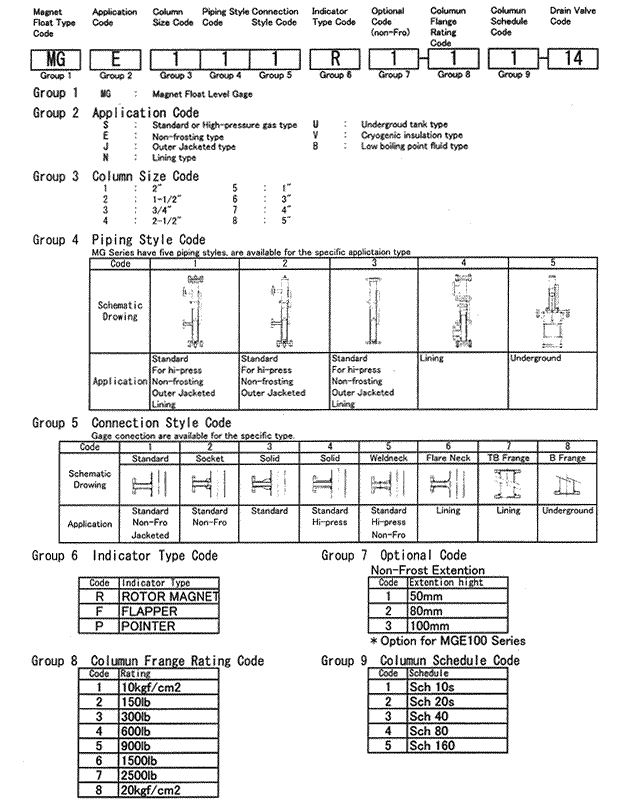

- Piping Model Code
- 1、2、3（ Model code ）
