KLINGAGE MG (Magnet Float) Type Level Gage
MGS400 Series (High Pressure Type)Type MGS414R-55-F2

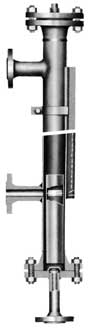

MGS400 Series (High Pressure Type)
MGS400 series are designed to be used under extreme high pressure.
The chamber wall is much thicker than MGS100.
Standard Specification
| Column size | 2-1/2B |
|---|---|
| Column schedule | Sch 160 |
| Flange Rating | 600Lb～2500Lb |
| Materials | SUS30, SUS316 |
| Indicator | Rotor Magnet |
| Pressure Rating at 38℃ | 39.3MPa(400kgf/cm2) |
| Temperature Range | Up to 400℃ |
| Specific Gravity Range | .65 and up |
| Viscosity Rage | Up to 1.5p |
| Pipe Model Code |
1、2、3（）
|
