Magnetic Level Gages

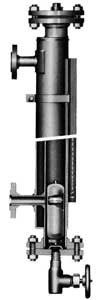

MGJ100 Series (Jacketed Type) MGJ112R-11-21

Jacket Type (MGJ100 Series)

MGJ 100 series has Termal jacket to keep the liquid temperature stable. It enables to measure the level of high coagulating point or low boiling point liquid.

Standard Specification

Column size 2B (Jacket:3B)
Column schedule Sch 10s、Sch 40
Flange Rating 1K, 150Lb, 300Lb, 600Lb
Material SUS304, SUS316 (Jacket:SUS304)
Indicator Method Rotor Magnet
Pressure Rating at 38℃ 9.9MPa
Temperature Range Up to 400℃
Specific Gravity Range .35 and up
Viscosity Rage Up to 1.5p
Piping Shape Code
